Ultrasonic radio sensor Wilsen.sonic (IBC variant)
€345.90*
Available in 28 days
Ultrasonic radio sensor Wilsen.sonic (IBC variant)
The battery-powered
WILSEN.sonic wireless ultrasonic sensor (IBC version) measures the fill level
with millimeter precision and transmits the data via LoRaWAN® as a percentage

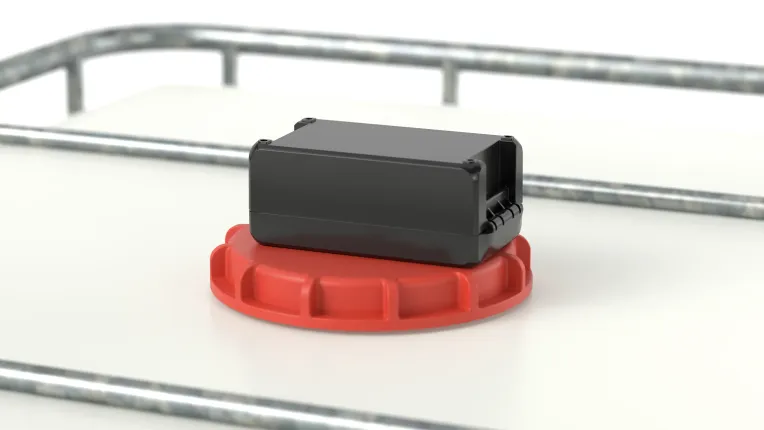

value. The device can be quickly, easily, and securely screwed into any IBC lid
with a standard two-inch thread, without the need for cables. On lids with two
screw-in openings, the unused one remains available for supply lines or other
attachments. The sensor’s measuring range is preconfigured, so no
parameterization is required. When an IBC is replaced, the sensor remains in
the lid and can be reused without re-registering it in the LoRaWAN® network.
This means only one device is needed per measuring point, regardless of the
number of IBCs in use. The sensor also remains intact when an IBC is disposed

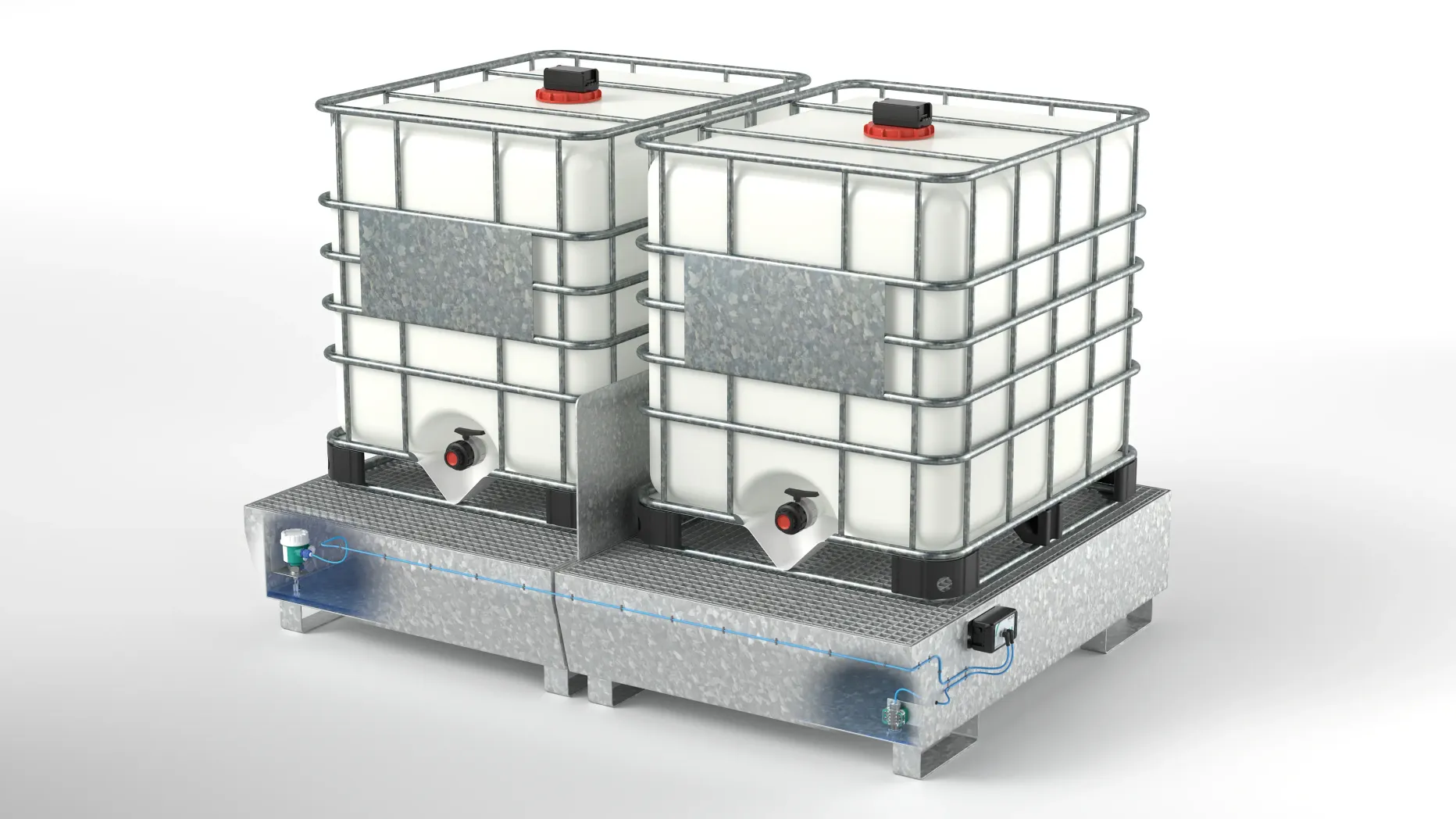

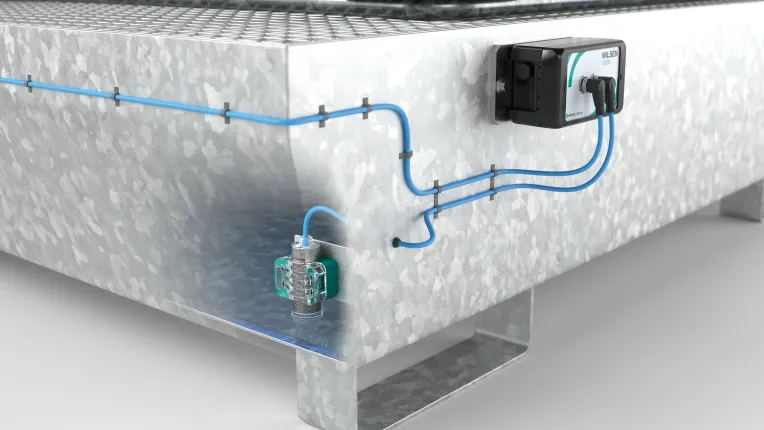

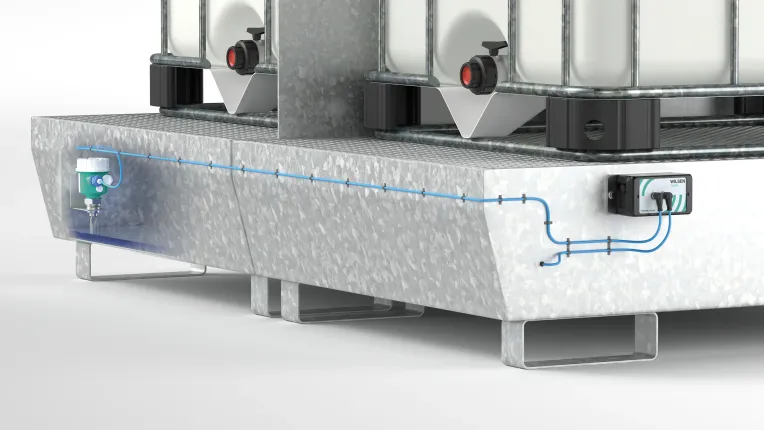

of. The WILSEN.node wireless sensor node can additionally be used to detect
leaks and maximum fill levels in collection trays beneath the IBCs. It allows
wireless connection of capacitive sensors or vibration limit switches, both well
suited for this detection task.
Technical Features :
■ Robust ultrasonic measurement with millimeterprecise resolution
■ Easy installation via standard two-inch thread in the IBC lid
■ Replaceable high-performance battery (3.6 V, 13,000 mAh)
■ LoRaWAN interface including downlink channel for remote access
■ Bluetooth interface for easy commissioning and parameterization via WILSEN
app (iOS and Android)
■ Degree of protection: IP66/67
■ Temperature range: –25 … +70 °C
■ Optional additional leak detection possible via WILSEN.node wireless sensor
node
