CleverCity Greenbox Compact 3 time switch for controlling street lighting

Available separately available accessories for CleverCity Greenbox Compact 3 (not included in standard delivery)
CleverCity Greenbox Compact 3 with antenna (not included in standard delivery)
Available separately available accessories for CleverCity Greenbox Compact 3 (not included in standard delivery)
CleverCity Greenbox Compact 3 with antenna (not included in standard delivery)
Product number: 172282
Manufacturer: CleverCity
EAN: 4001471743508
Weight: 0.24 kg

Greenbox Compact 3 - Intelligent LoRaWAN®-enabled timer for controlling street lighting

Greenbox Compact 3 is an intelligent time switch with an astronomical calendar and LoRaWAN® radio interface. It is used for intelligent, modern control of street lighting. Greenbox Compact replaces existing conventional audio frequency ripple control receivers.

The switching on and off of the connected street lighting is either controlled by the astronomical calendar stored in the Greenbox or by means of a LoRaWAN® command. The exact time is automatically synchronized between the server and the Greenbox Compact via the LoRaWAN® interface.

Switching commands are transferred via the LoRaWAN® interface. The switching commands can either be sent to individual devices (single mast control) or as real synchronous group commands (string control).

The parameterization of the Greenboxes can also be set and read out via the LoRaWAN interface. A current measurement checks the function of the consumer (e.g. defective lamp). Switching changes or errors are automatically sent as a LoRa message.

The Greenbox Compact is 1: 1 connector compatible with standard ripple control receivers available on the market (e.g. Landis + Gyr RCR 131 or Langmatz EK 593) and complies with the current EN and IEC standards.

Features:

  • Can be used for single mast or group control
  • Simple assembly as it is compatible with standard TRE's
  • DIN rail mounting is possible as an option
  • Automatic time synchronization
  • Up to 8 switching programs available
  • Integrated power measurement (enables functional testing of the consumer)
  • USB-C interface for configuration
  • Can also be used as a simple time switch without LoRaWAN® functionality
  • Sealable
  • LED operating status display
  • Protection class IP32

Scope of delivery:

  • Greenbox Compact 3

Accessories (to be ordered separately)

  • Mast antenna with 4 m cable for mast diameter 80-140 mm (ANT140), Order number 172726 (see also tab "Accessories")
  • optional: DIN rail adapter for Greenbox Compact (GBC3-DIN), Order number 173291 (see also tab "Accessories")
  • optional: Standard SMA angled antenna (ANT100), Order number 173292 (see also tab "Accessories")

Video on the ZENNER Youtube channel:

LoRaWAN: Smart Lighting with the Internet of Things

Properties "CleverCity Greenbox Compact 3 time switch for controlling street lighting"
Usage: Lighting
device type: Adapter & Retrofit, Sensor Plug'n'Play
industry: Public & Private Utilities, Smart City
location: Indoor
protection classification: IP32
sensors: Light/Brightness
technology: LoRaWAN
CleverCity LoRaWAN® Angled Antenna for Greenbox Compact 3
CleverCity LoRaWAN® Angled Antenna for Greenbox Compact 3
LoRaWAN® Angle Antenna (SMA) for CleverCity Greenbox Compact 3. For the safest possible operation or to ensure the best possible radio reception, we recommend an additional antenna for each Greenbox Compact 3, which is used for single mast control. The angled rod antenna with SMA connector ensures the connection between the LoRaWAN® network and the GreenBox Compact 3. It is used in plastic switch boxes, house installations etc. It is screwed directly onto the GreenBox.
Manufacturer:

€7.90*
CleverCity LoRaWAN Mast Antenna for Greenbox Compact 3
CleverCity LoRaWAN Mast Antenna for Greenbox Compact 3
LoRaWAN mast antenna for CleverCity Greenbox Compact 3. For the safest possible operation or to ensure the best possible radio reception, we recommend an additional antenna for the Greenbox compact, which is used for single mast control. The mast antenna secures the connection between the LoRaWAN network and the green box built into the street lighting mast. The antenna is mounted flush on the mast with just one drill hole and secured with the enclosed strap. A foam rubber seals the antenna and prevents against moisture penetrating. Technical data: Frequency 865 ... 880MHz Amplification 0dBd (2dBi), typically Protection class IP66 Polarization linearly Sending power RMS < 10W Temperature range -40°C ... +85°C UV-protection > 10 years Material ABS Cable length ca. 4m Weight ca. 100g Dimensions 150x38x36mm Fixing belt Mast diameter 80 to 140mm
Manufacturer:

€20.90*
CleverCity DIN rail adapter for Greenbox Compact 3
CleverCity DIN rail adapter for Greenbox Compact 3

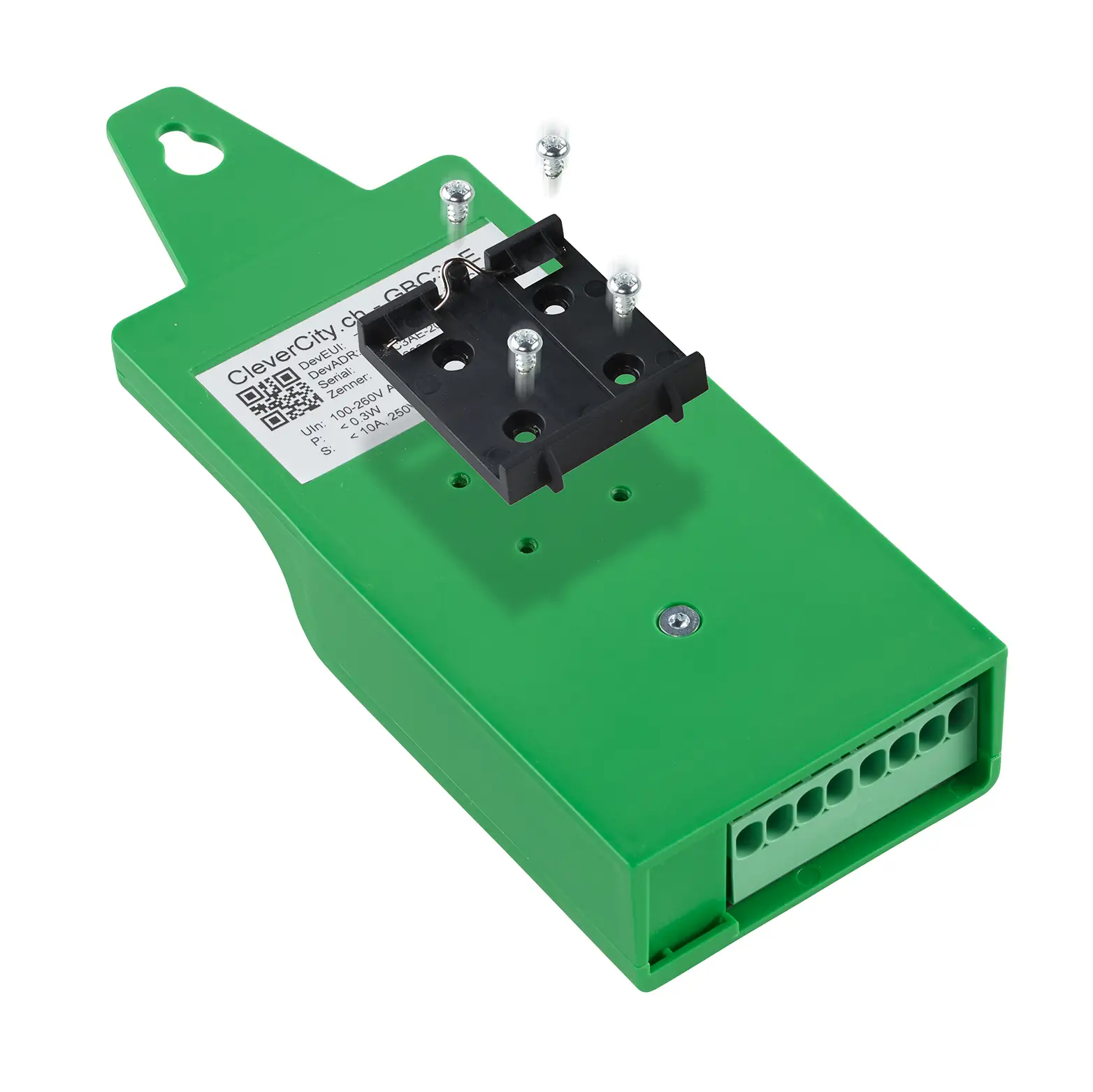

DIN rail adapter for CleverCity Greenbox Compact 3. With the DIN rail adapter, you can optionally and if necessary also mount the Greenbox Compact 3 on a DIN rail - for example in a distribution box. This mounting variant is often used when the device is used for string control. The adapter is attached to the back of the Greenbox with the four screws supplied.
Manufacturer:

€6.75*
