Clamp-on Current Transformer for Harvy 2
slide 3 of 2
Product number:
190806
Manufacturer:
deZem
Weight:
1 kg

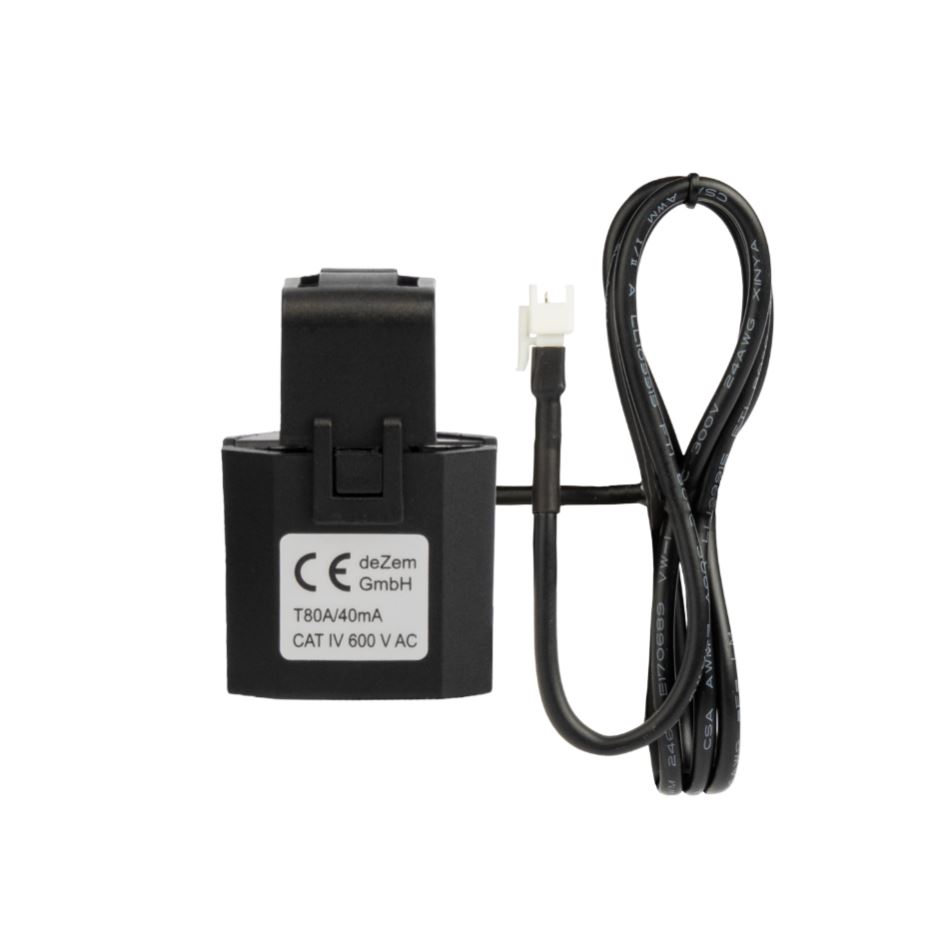

Clamp-on Current Transformer for Harvy 2
Clamp-on Current Transformer for Harvy 2
High-quality, clamp-on current
transformer, for current measurements
and monitoring up to 80 A per conductor. Extremely compact design and it can
also be installed in places where there is no room for conventional
transformers. These transformers can be connected to a ZMx system over long
distances and in any configuration using practical plug-in connections. The
deZem T80/40 folding current transformer enables existing systems to be
retrofitted quickly and efficiently.
- Rated current 80 A;
- JST connector system;
- Output signal 0-40 mA;
- 1 m connection cable;
- LxHxW: 26x39x23 mm.
Manufacturer "deZem"
Since 2003, deZem GmbH has been developing tools for targeted and effective energy management and energy controlling. By collecting, visualizing and analyzing relevant data, our service partners and customers fundamentally optimize their energy and resource consumption. Extensive services in the field of secure, web-based parameterization of automation systems are added.
Related links of the manufacturer
Tab 3 headline
slide 1 of 1

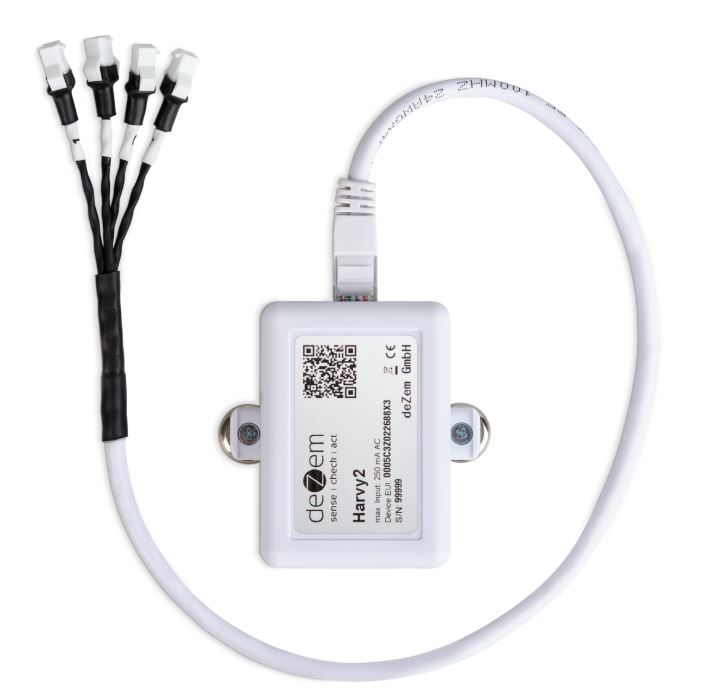

Harvy2 - Battery-free LoRaWAN® Current metering sensor
€190.90*
Harvy2
- Battery-free LoRaWAN Current metering sensor
The
Harvy2 is a LoRaWAN sensor that measures current and power
without batteries or external power. Powered by the conductor's magnetic field
(min. 1A), it offers maintenance-free, wireless monitoring. Simply clamp it on,
connect up to four current transformers, and get real-time data on your IoT
platform. Add a voltage converter for full three-phase power analysis. Features
include intelligent event filtering, configurable reporting, and easy web
interface setup.
Why Harvy2:
·
4 inputs with polarised and strain-relieved plug connections
·
For current transformers up to 500 A (larger currents on request) or deZem
voltage converters
·
Metering data: RMS currents, active power*, mains voltage*, power factor*,
mains frequency*, etc.
·
Intelligent event filter: metering series (inrush currents, etc.) accurate
to the second at a defined maximum rate**.
·
Self-sufficient and maintenance-free (battery-free)
·
Data transmission up to several kilometres and through thick house walls
via LoRaWAN
·
Compact design
·
Flexible and quick installation without laying cables, e.g. via magnetic
holder or top-hat rail adapter
·
Easy configuration and firmware updates via USB-C
·
On-site data visualisation via USB-C and web interface
·
Can be used with the deZem IoT platform and any other platform (JavaScript
decoder freely available, e.g. for TTN, Chirp Stack, element iot)
